Third-Party-Devices

Overview

This section of our website provides a list of auxiliary devices known to be compatible with eGauge and gives some detail on available measurements and how to configure them in eGauge.


Introduction

While the eGauge supports direct measurement of electrical power, voltage, current, and properties derived from those measurements (such as power factor or THD), many other physical quantities can be measured and recorded by the eGauge with the help of auxiliary devices. For example, there are auxiliary devices to measure and report temperature, humidity, CO2 level, solar irradiance level, volumetric flow rates, pulse counts from water meters, etc. The eGauge can read data from compatible auxiliary devices via the local network using hardwired Ethernet or powerline communication (HomePlug) as the physical media. External sensor data is then recorded on the eGauge internal memory in the same manner as direct measurements. Typically, each recorded quantity (for example, outdoor temperature) occupies one register in the eGauge and as such the number of quantities that can be recorded is limited only by the number of registers available on the eGauge.

Auxiliary devices with only a serial interface (typically RS-485 or RS-232) cannot directly communicate with an Ethernet network. However, such devices can be accommodated with a BF-430 serial-to-Ethernet converter (see below for more details).

Some auxiliary devices require configuration before they can be used. The extent of configuration depends on the nature of the device and the variables being measured. In particular, RS-485 devices need to have a unique address assigned. The installing party should be familiar with how to configure these devices; the device manufacturer should be contacted for configuration support.

Disclaimer

eGauge Systems cannot guarantee compatibility and support for documented or undocumented devices. Many factors, including network environment, changes to third-party device hardware or software, and other unforeseen issues will affect the compatibility and stability of communication. Any third-party hardware to be used with the eGauge should be tested and confirmed before assuming expected functionality. Direct eGauge troubleshooting is limited to eGauges available via the proxy-server.

The eGauge is configured to read from remote devices in Settings → Installation → Remote Devices. A remote device entry consists of a device name (typically descriptive of the remote device), protocol (for example, RS-485 or Modbus TCP) and a device address (IP address or MAC of the remote device, and may contain other information about the remote device). Examples and descriptions for these entries can be found along with the specific device information in this section of the website.

Please see the Remote Devices section in the eGauge configuration guide for additional information on configuring the eGauge for remote devices.


BF-430: RS-485 to Ethernet Converter

The Chiyu BF-430 is an RS-485/RS-232 to Ethernet converter that is required for serial communication to third-party devices (for example, Modbus RTU). The eGauge sends data to the BF-430 over the Ethernet network, and the BF-430 in turn sends the data to the third-party device over the serial line. When the device on the serial line responds, the BF-430 relays that data to the eGauge.

The BF-430 can accommodate one RS-232 slave device, or multiple RS-485 slave devices. If there are multiple slave devices on the RS-485 line, all devices must communicate using the same protocol and bus settings (including but not limited to: baud rate, parity, data bits, and stop bits). The RS-232 and RS-485 ports cannot be used simultaneously. Only one master unit (i.e., the eGauge) may request data from the BF-430 at a time.

The BF-430 is powered by 9–30Vdc, via power terminals or a standard barrel jack plug. The Chiyu BF-430 contains an embedded web server that is used for configuration and diagnostics.

The Chiyu BF-430 image is currently unavailableThe most common attributes that must be adjusted on the BF-430 are:

  • Baud rate
  • Data bits
  • Stop bits
  • Parity check

These attributes can be adjusted from the Serial Type menu under Advanced Setup, or the settings can be pre-set for specified devices prior to shipping when ordered from eGauge Systems. Please specify the device type(s) when ordering.

Some troubleshooting and verification can be done on the web interface of the BF-430. For example, verification of the correct serial settings from the Serial Type menu, and verification of communication on the serial port from the System Status menu. The full manual for the Chiyu BF-430 can be found here.


Modbus

The eGauge can read data via Modbus TCP and Modbus RTU. Modbus RTU is a serial protocol and requires an RS-485 to Ethernet converter as described in the previous section. Modbus TCP communicates directly on the TCP/IP network. Modbus RTU via a serial-to-Ethernet converter is not the same as Modbus TCP, and the eGauge must be configured appropriately.

Supported Modbus devices listed in the Third-Party device section have Modbus maps built into the eGauge device. If a Modbus RTU or Modbus TCP device is not listed, in-line definitions can be used to manually specify the Modbus map. See section Modbus Syntax below for more information.

To request implementation of a map, please email support@egauge.net To expedite new device implementation, an eGauge with at least one functional in-line definition should be available on the proxy server for eGauge support to test.

Important

Device implementation by eGauge Systems is not guaranteed, and implementation time will vary.


Modbus Syntax

Modbus remote devices are defined by the address:
  DEVTYPE.SLAVE_ADDR@ADDR[:PORT]
Note: Modbus RTU requires prefixing the address with modbus://


The following table describes the full Modbus address format and syntax. In-line definitions may be used to allow the eGauge to read from arbitrary or unsupported Modbus devices.

Variable Definition
DEVTYPE Remote device type or inline Modbus register definitions using the following syntax to define the following elements:
name=addr,[!]type[+offset] [*scale][,unit];

name register name
addr register address
! indicates a read-only register
type register type?
offset additive offset for register value
scale multiplicative scale value for register value
unit physical unit?
SLAVE_ADDR The Modbus address (0-255) of the device
ADDR RS-485 to Ethernet adapter MAC address, or IP address of host
PORT The port-number of the RS-485 to Ethernet adapter or host
Register Type Description
bit 1-bit
s16 signed 16-bit integer
u16 unsigned 16-bit integer
s32 signed 32-bit integer
s32l little-endian signed 32-bit integer
u32 unsigned 32-bit integer
u32l little-endian unsigned 32-bit integer
s64 signed 64-bit integer
u64 unsigned 64-bit integer
float float value
floatl little-endian float value
double double value
Unit Code Physical Quantity
Ohm Resistance (Ω)
W Power (watt)
kWh Energy (kWh)
degC Temperature (degrees Celsius)
m/s Speed (meters per second)
mm Length (millimeter)
W/m^2 Irradiance (watts per square meter)
ms Time (millisecond)
s Time (seconds)
h Time (hour)
V Voltage (volt)
mV Voltage (millivolt)
A Current (ampere)
mA Current (milliampere)
As Charge (ampere-second)
Ah Charge (ampere-hour)
mAh Charge (milliampere-hour)
Hz Frequency (hertz)
% Percentage (%)
m3/s Volumetric flow (cubic meters per second)
m3 Volume (cubic meters)
Pa Pressure (pascal)
kPa Pressure (kilopascal)
deg Angle (degree)
RH Relative humidity (%)

Examples:

Modbus TCP:

  • badger3050.1@192.168.1.21
  • volume=101,u32,m3.1@192.168.1.21

Modbus RTU:

  • modbus://badger3050.1@000ee3026a50
  • modbus://volume=101,u32,m3.1@000ee3026a50:50001

Many physical quantities such as CO2 level, solar irradiance level, temperature, humidity, volumetric flow rates, pulse counts from water meters, etc can be measured and read to generate a report by the eGauge with the help of some auxiliary devices. This section of our website provides a list of auxiliary devices which are known to be compatible with eGauge and gives a certain idea about available measurements and how they can be configured in eGauge. However, all third-party hardware should be tested and confirmed before assuming expected functionality with eGauge.

BF-430: RS-485 to Ethernet Converter

The Chiyu BF-430 is an RS-485/RS-232 to Ethernet converter that is required for serial communication to third-party devices. It is through the Ethernet network that eGauge sends data to the BF-430, which in its turn sends the data to the third-party device over the serial line. When the device on the serial line responds, the BF-430 transfers that data to the eGauge.

Modbus

The eGauge can read data via Modbus TCP and Modbus RTU. Modbus TCP communicates directly on the TCP/IP network. The eGauge must be configured appropriately as Modbus RTU via a serial-to-Ethernet converter is not the same as Modbus TCP.

Modbus Syntax

Modbus remote devices are defined by the address:

DEVTYPE.SLAVE_ADDR@ADDR[:PORT]

Modbus RTU requires prefixing the address with modbus://

The full list of Modbus address format and syntax is available in table format at http://energyautomation.com.au/third-party-devices/

Analog/Digital Input Devices


Product Device

Configuration

Device Name Protocol Device Address?
ControlByWeb X-320 ControlByWeb IP_ADDR
Device Address Configuration
Variable Description
IP_ADDR IP address of ControlByWeb X-320
PORT Port to use for ControlByWeb (default: 80)
Device Address Example(s)
192.168.1.21
192.168.1.21:8080


Although with eGauge it is very much possible to receive direct measurement of electricity, current, and voltage, there are other many physical quantities such as CO2 level, solar irradiance level, temperature, humidity, volumetric flow rates, pulse counts from water meters, etc for which eGauge needs other compatible auxiliary devices to do the same. Analog/Digital Input Devices are such auxiliary devices that are compatible with eGauge and therefore enable it to measure all such types of physical quantities as discussed above. However, it is important to note that eGauge Systems cannot guarantee compatibility and support for documented or undocumented devices. Thus, it is very much needed that any third-party hardware that is to be used with the eGauge is properly tested and confirmed before assuming expected functionality.

The ControlByWeb X-320™ is a web-based module with a combination of analog and digital inputs that can be used to measure voltage, current, temperature, humidity, wind speed, solar radiation, fluid level, flow, frequency, pulse count, etc. Appropriate Sensors are needed for ControlByWeb X-320™ to enable it to do the measuring. ControlByWeb is the Protocol of ControlByWeb X-320™ and its address is IP_ADDR.

Environmental Sensors


Product Device

Configuration

Device Name Protocol Device Address?

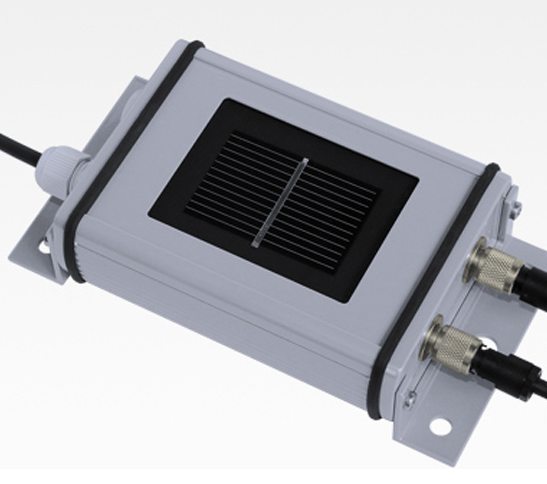

IMT Solar Irradiance Sensor RS485 modbus://imt_si.SLAVE_ADDR@CONV_ADDR[:PORT]
Device Address Configuration
Variable Description
SLAVE_ADDR Slave (serial) address of Modbus device
CONV_ADDR Serial-to-Ethernet converter MAC or IP address
PORT TCP port to use on serial-to-Ethernet converter (default: 50000)
Device Address Example(s)
modbus://imt_si.2@000ee325a6f4
Product Device

Configuration

Device Name Protocol Device Address?

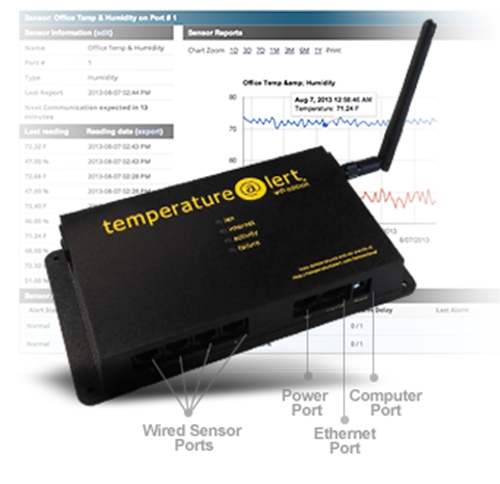

Temperature @lert WiFi Edition temperature @lert IP_ADDR
Device Address Configuration
Variable Description
IP_ADDR IP Address of Temperature @lert device
Device Address Example(s)
192.168.1.21
Notes
The eGauge will only fetch registers for sensors configured on the Temperature @lert device.
Product Device

Configuration

Device Name Protocol Device Address?
Tempco CO2 Sensor RS485 modbus://temco_co2_e.SLAVE_ADDR@CONV_ADDR[:PORT]
Device Address Configuration
Variable Description
SLAVE_ADDR Slave (serial) address of Modbus device
CONV_ADDR Serial-to-Ethernet converter MAC or IP address
PORT TCP port to use on serial-to-Ethernet converter (default: 50000)
Device Address Example(s)
modbus://temco_co2_e.1@000ee325a6f4
modbus://temco_co2_e.3@000ee325a6f4:10000
Notes
Ethernet communication on the Tempco CO2 Sensor is not yet supported.
Product Device

Configuration

Device Name Protocol Device Address?

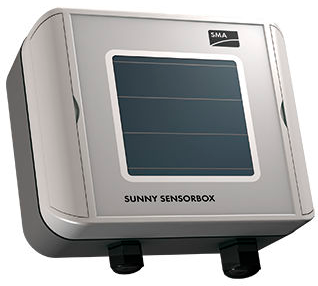

SMA Sunny SensorBox RS485 sma://@CONV_ADDR[:PORT]
Device Address Configuration
Variable Description
CONV_ADDR Serial-to-Ethernet converter MAC or IP address
PORT TCP port to use on serial-to-Ethernet converter (default: 50000)
Device Address Example(s)
sma://@000ee325a6f4
sma://@192.168.1.21
Notes
The SMA SunnySensorbox has been discontinued in 2015.

Ambient temperature and wind speed measurements require add-on sensors.

Available measurements are fetched live from the SensorBox, so additional unsupported measurements may show up based on the SensorBox version.

Product Device

Configuration

Device Name Protocol Device Address?
Lufft WS501-UMB RS485 modbus://lufft.SLAVE_ADDR@CONV_ADDR[:PORT]
Device Address Configuration
Variable Description
SLAVE_ADDR Slave (serial) address of Modbus device
CONV_ADDR Serial-to-Ethernet converter MAC or IP address
PORT TCP port to use on serial-to-Ethernet converter (default: 50000)
Device Address Example(s)
modbus://lufft.1@000ee325a6f4




Solar power is one of the cost-effective and most practiced methods to save energy. Recently there are so many people out there who are installing solar panels on their roof. If you also have solar panels installed on your roof, then it is important to monitor the energy that has been observed by the solar panels and that has been converted into the energy for the home. To ease the process and help you in monitoring the electromagnetic radiation, Australia Energy Automation brought you the best solar irradiance sensor that will help you in the process.

Our IMT solar irradiance sensor helps in monitoring the solar energy and its utilization every second of the day. You will be provided with the entire analytics about the absorption and consumption of the solar energy. Our temperature alert WiFi edition will help in monitoring the temperature all the time. Our Tempco CO2 sensors will help in monitoring the amount of CO2 present in industrial areas or commercial buildings. SMA sunny sensor box helps in monitoring the solar radiation all day long and to analyze the temperature. Lufft WS501-UMB is designed to monitor all the environmental elements. Do not worry about the cost of any of these environmental sensors, we made sure that all our products, accessories and third-party accessories are available at an affordable price. The quality of our products is unmatchable and best in class.

Flow Meters


Product Device

Configuration

Device Name Protocol Device Address?

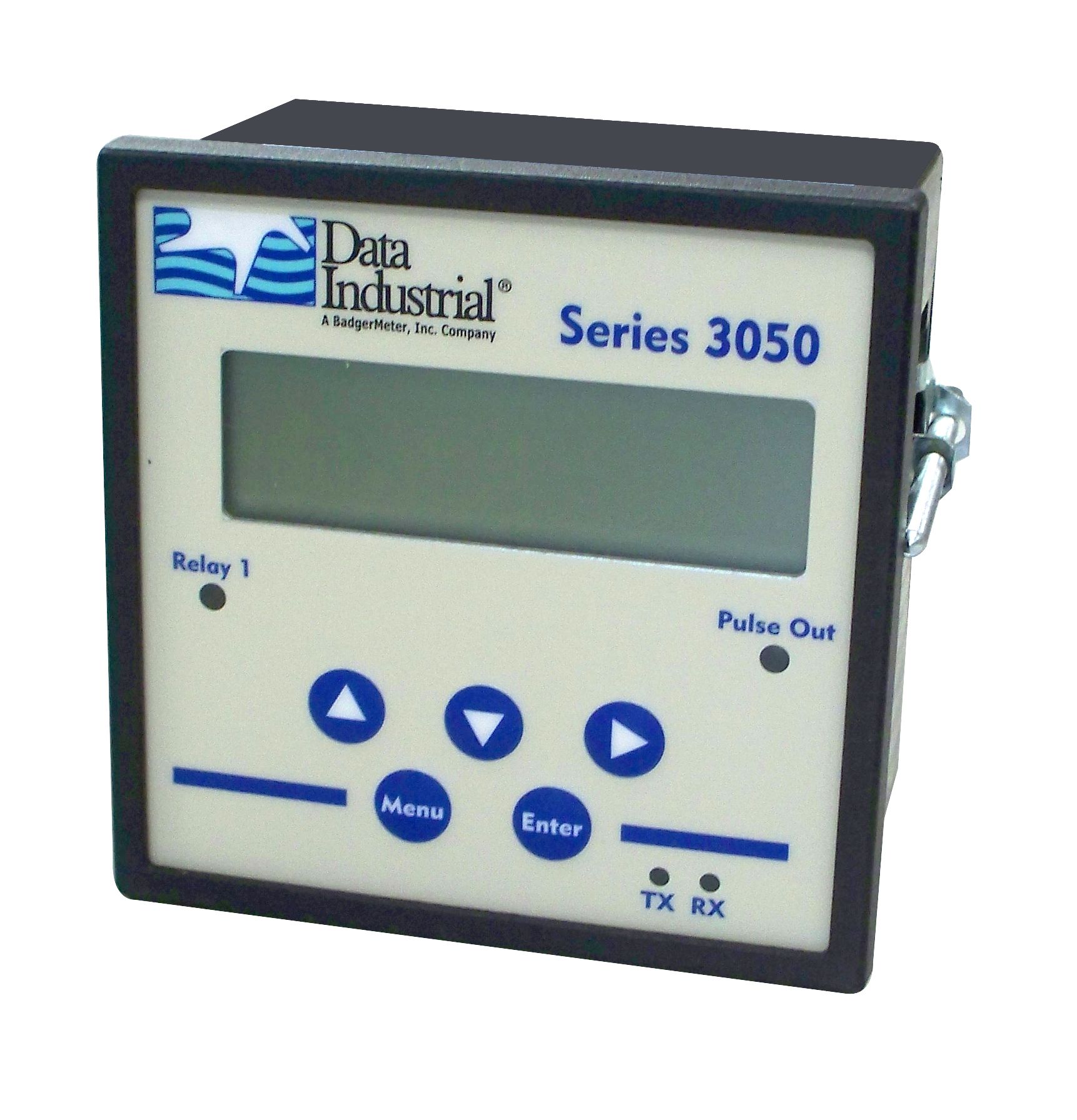

badger3050 RS485 modbus://badger3050.SLAVE_ADDR@CONV_ADDR[:PORT]
Device Address Configuration
Variable Description
SLAVE_ADDR Slave (serial) address of Modbus device
CONV_ADDR Serial-to-Ethernet converter MAC or IP address
PORT TCP port to use on serial-to-Ethernet converter (default: 50000)
Device Address Example(s)
modbus://badger3050.1@000ee325a6f4
modbus://badger3050.1@000ee325a6f4:10000





BTU meter or badger or badge meter is designed to measure the energy of the chilled water. They can be used in offices, commercial and industrial purposes. For any energy management system, it is important to measure the energy that has been present in the liquids. The savings due to the operational procedures and the equipment performance can be determined through the energy. When t comes to rising prices and the regulations the optimization of the thermal energy flow is one of the main issues. From the heat delivery central heating plants to the heat transfer flow in the industries, it is important to control and balance the energy flow.

The energy flow can be monitored with the help of BTU Meter. It calculates the energy flow and also helps in analyzing the temperature of water into the inlet and outlet. BTU is an energy meter which will display the energy of the water. At Australia Energy Automation, we will provide you with the best in class BTU 3050 system which is useful for you in measuring the thermal energy as well as temperature and liquid flow in these closed pipe systems. All our products are of high quality and we will make sure that you get excellent after sales services along without products.

Heating Systems


Product Device

Configuration

Device Name Protocol Device Address?
Alpha-Innotec Luxtronik 2 Alpha-Innotec Luxtronik 2 DEV_ADDR
Device Address Configuration
Variable Description
DEV_ADDR Hostname or IP address of device
Device Address Example(s)
192.168.1.21




The heating system consists of a mechanism which helps in keeping the premises warm. Thermal energy is used in order to keep the offices, house or any other place in an acceptable temperature. The heating systems that have been used can be of different types of material. Choosing one from all the models available out there is the personal choice of a person. At Australia Energy Automation you will be provided with the best heating devices which will help in maintaining the temperature right all the time. Our Alpha-Innotec Lutronik will help in maintaining the desired temperature in your room.

Australia Energy Automation will make sure that you are provided with the best in class device for the temperature control in your room. We are in this industry for some years and we know how to cater different types of needs of the customer with perfection. No our relationship with the customer won’t be broken by just selling a product to them, we will make sure that our customer is satisfied with the product completely and if there are any problems with the product we will provide you with the best after-sales services in the industry. Get the high-quality Alpha-Innotec Lutronik heating system at Australia Energy Automation.

Inverters


Product Device

Configuration

Device Name Protocol Device Address?
ABB Aurora Inverters RS485 po://SER_ADDR@CONV_ADDR[:PORT]
Device Address Configuration
Variable Description
SER_ADDR Serial address of inverter
CONV_ADDR Serial-to-Ethernet converter MAC or IP address
PORT TCP port to use on serial-to-Ethernet converter (default: 50000)
Device Address Example(s)
po://@000ee325a6f4
po://2@000ee325a6f4
Notes
ABB Power-One inverters with RS-485 serial output are supported.

If SER_ADDR is omitted, the eGauge will auto-enumerate to locate all inverters. If this fails, try specifying the SER_ADDR option and creating one remote device entry for each inverter.

Product Device

Configuration

Device Name Protocol Device Address?
SMA Inverters RS485 sma://@CONV_ADDR[:PORT]
Device Address Configuration
Variable Description
CONV_ADDR Serial-to-Ethernet converter MAC or IP addres
PORT TCP port to use on serial-to-Ethernet converter (default: 50000)
Device Address Example(s)
sma://@000ee325a6f4
Notes
SMA inverters with RS-485 serial output are supported.

Available measurements are fetched from the inverter, and will vary based on inverter model. Consult the SMA inverter manual for available parameters.



The inverter or power inverter helps in converting the direct current (DC) into alternating current (AC). The input voltage, output voltage, overall power and frequency handling depends upon the design and circuitry that will be used in a specific system. The inverter does not have any mechanism to produce the power. The power is produced by a DC source. These power inverters can have two kinds of mechanisms- mechanical and electronic. There are static inverters which do not use any moving parts in the conversion of AC to DC.

At Australia Energy Automation we provide both normal inverters and the solar power inverters. The normal inverters are used in the conversion of energy whereas the solar inverters help in converting the solar energy. Both the inverters are of high quality and designed for domestic or small commercial place purpose. Our SMA inverters have photovoltaic cells which will help in the conversion of the DC solar energy into AC solar energy. These SMA inverters are also provided for stand-alone and independent systems that work with the batteries or grid tied. The inverters help in providing the energy whenever there is an interruption in the normal flow of energy. We are sure that our ABB Aurora inverters and SMA inverters serve the purpose perfectly.

Remote eGauge


Product Device

Configuration

Device Name Protocol Device Address?

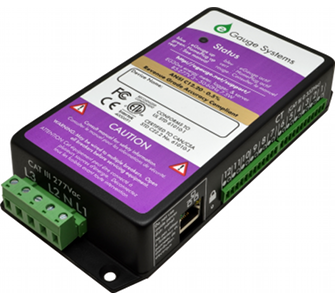

Remote eGauge via TCP remote eGauge via TCP DEV_ADDR
Device Address Configuration
Variable Description
DEV_ADDR Hostname or IP address of eGauge device
Device Address Example(s)
eGauge9999
192.168.1.88
Notes
TCP communication between eGauges is slower than UDP, but may be the chosen option if UDP communication is unavailable between the devices. Remote TCP communication over the eGauge proxy server is not recommended due to significantly higher lag times. Remote eGauge via TCP will not work if the slave eGauge has site-wide password protection.

The available measurements an eGauge has to offer will vary based on the installation configuration.

Product Device

Configuration

Device Name Protocol Device Address?
Remote eGauge via UDP remote eGauge via UDP DEV_ADDR
Device Address Configuration
Variable Description
DEV_ADDR Hostname or IP address of eGauge device
Device Address Example(s)
eGauge9999
192.168.1.88
Notes
UDP communication is the preferred method between eGauge devices. UDP communication is faster than TCP. eGauges communicating via UDP typically must be on the same local area network, or allow UDP communication to pass between the two.

The available measurements an eGauge has to offer will vary based on the installation configuration.



eGauge is an equipment which helps in monitoring the electric energy that has been consumed by the appliances present in a location. Remote eGauge TCP helps in monitoring the total electricity consumption of a building. These eGauge equipment help in monitoring the solar and wind energy along with the electricity. The total power that has been consumed by an individual circuit will be measured and necessary steps are taken to display the exact values for the users. eGauge TCP and UDP are portable, affordable and easy to use. The interface of these equipment can be understood by beginners too.

After collecting the data about the electric consumption, they will share the details to a smartphone, computer or any other electronic gadget with the help of Wifi connection. The energy is monitored every second and will be displayed immediately so that the real-time values are calculated. The device is capable of showing the records of thirty years. Australia Energy Automation is the specialist in eGauge distribution. We provide all types of eGauge meters that will be necessary for your requirement. All our products are of high quality and we will assure you with the best in class customer support and after-sales service too.
